Race Reels® replace the normal ratchet with its 17 problems with a purpose-built patented ratchet system. Two Tools. 17 Solutions. Great tools for the job are designed to be easier. Easier is Faster. Faster saves time. Time is money. So choose the right tools for the job. Choose Race Reels®.
Watch how Race Reels® removes repeated strap handling, loose webbing and unnecessary steps from loading through to storage. The exact workflow improvements are listed below.
For those who prefer a written summary, look at the long list of improvements grouped across loading, transit preparation, release, retrieval and storage—every load, every day.
Less handling. Less loose webbing. Less time wasted. One cleaner load-restraint workflow.
The ratchet and tensioned webbing restrain the load. The reel manages the untensioned webbing. Each tool has one clear role, and every feature supports that role.
Fast and easy tensioning of only the amount of strap needed to reach over the load.
The ratchet performs the load-bearing job with a simpler loading action and greater leverage.
Design features

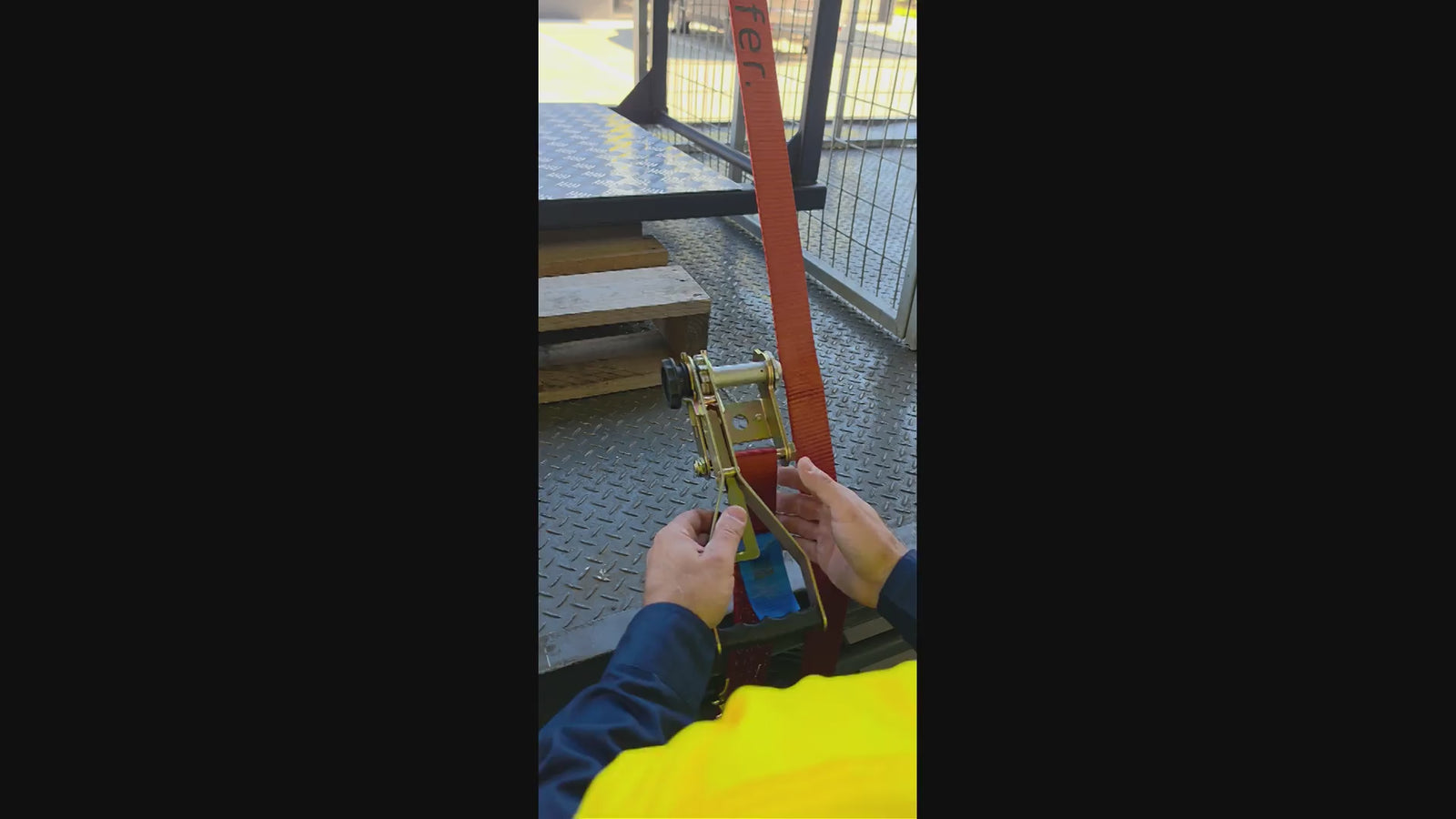

Side-loading is fast and easy.
An extended ergonomic handle for easier tensioning and leverage.
Locking Knob to prevent spindle from sliding out if tension is low.
The offset handle allows tensioning without handle frame intrusion. This allows the strap to be below the ratchet out of the way during tensioning which keeps hands free to hold ratchet and tension without having to deal with the excess strap. Note the Reel conveniently hangs below the ratchet out of the way whilst tensioning.
Reverse the spindle direction to help release overfilled webbing and recover quickly from a ratchet jam using a common shifter. Fast and easy and no more jarring hands.
Retains and manages the webbing throughout the entire load-restraint workflow.
The Reel and the webbing stored inside it are not load-bearing. Only the ratchet and section of webbing reaching over the load is under tension; the Reel only manages the untensioned portion of the strap which is what saves so much time and hassle.
Design features

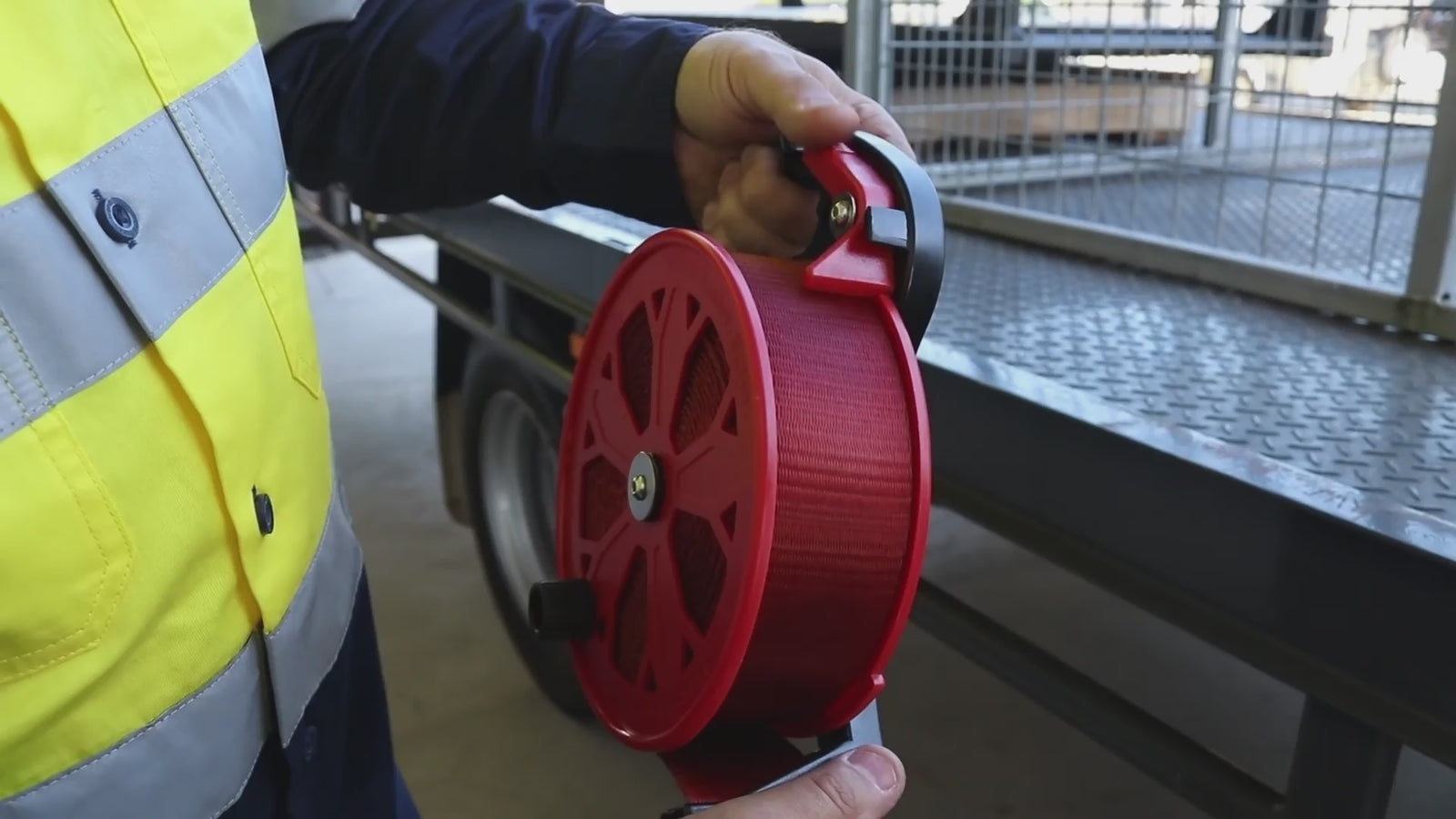

The Reel takes care of the webbing the entire cycle to help operators do their job faster, easier and safer. Designed for high-impact resistance, it is built tough for daily use and abuse. Note the strap is permanently housed in the Reel because the end is not needed because of the side-loading ratchet. Perfect.
No more hand rolling nightmare. The reel can wind 9m in seconds. Ultra-Fast & Ultra-Easy. How it should be.
The Reel has a ratchet spool to prevent accidental unwindings. A spring-loaded lever with bumpers around it also protect it from being depressed if it was accidentally knocked during transit. The reel also has a drag system to control the release ease and speed to aid use and also act as a secondary safety redundancy.
The Reel has a high tensile steel clip that has been engineered to hold more than the full weight of the Reel. It can secure the reel onto the tensioned strap about the ratchet or on to the back of the ratchet base. The folded lock jaw design with an internal guide in the Reel Frame keep it secure during transit.
The complete strap stays wound and organised on the reel between jobs, helping prevent tangled webbing and time-consuming sorting. No more storage box full of tangled straps!
The guide arm straightens and pre-flattens the webbing as it is wound, helping it store neatly and feed out cleanly.
Stainless-steel hardware improves corrosion resistance and durability in demanding transport environments.
The frame design allows for different size hands and for wearing gloves, whilst maximising winding ease of a full 9m webbing.
The Specialised Reel is a webbing-management tool—not a load-bearing restraint component. Its job is to manage the webbing in an impact-resistant light-weight form suited to rugged every day use. The flexibility is built in to the spool section to aid impact resistant when dropped or thrown. It's all purpose-built. Fast. Easy.
Use your own fleet, workflow and operating figures to estimate the time and value Race Reels® could return.
